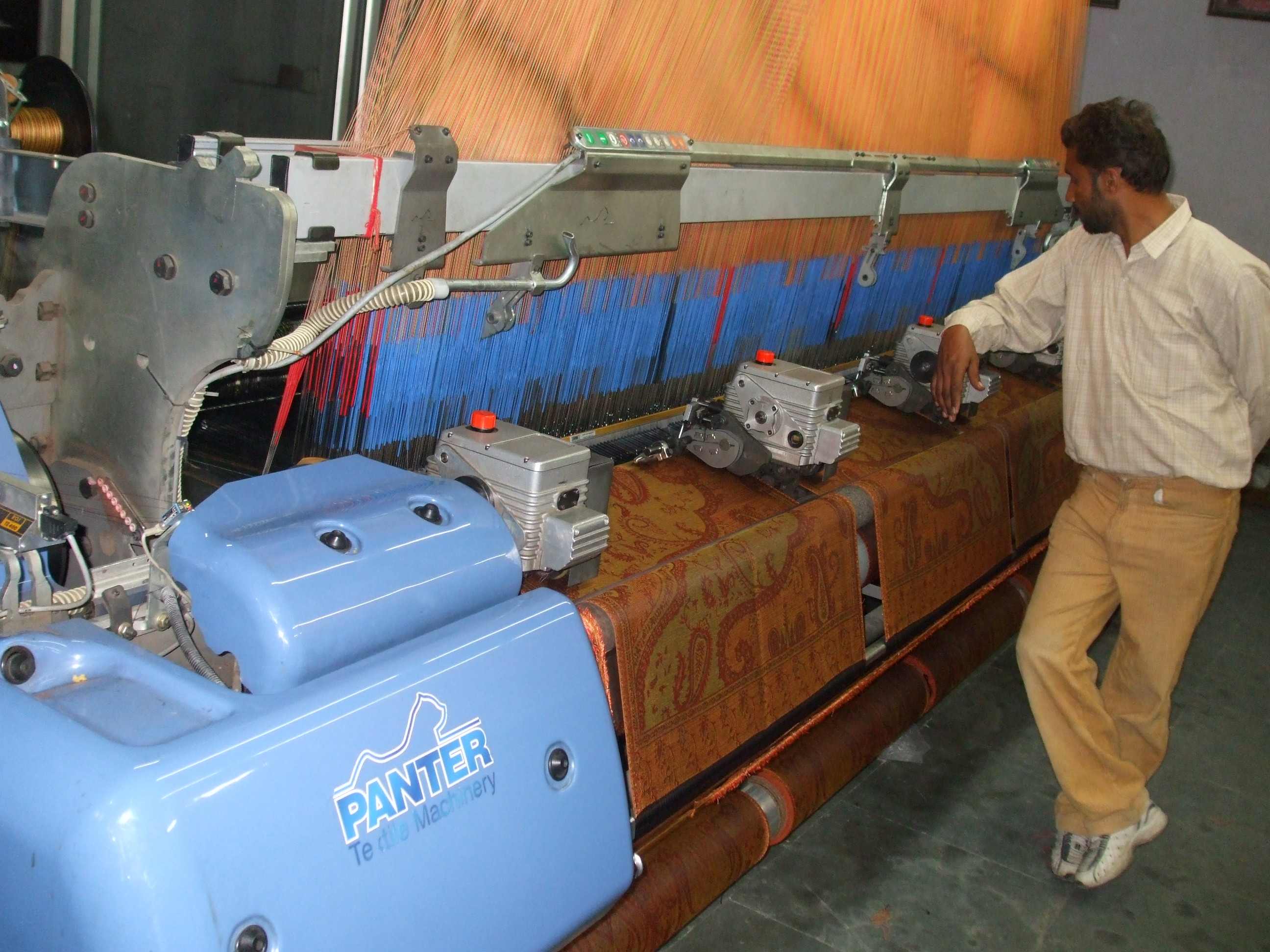

Multiple Width's Shawl Weaving Jacquard Loom

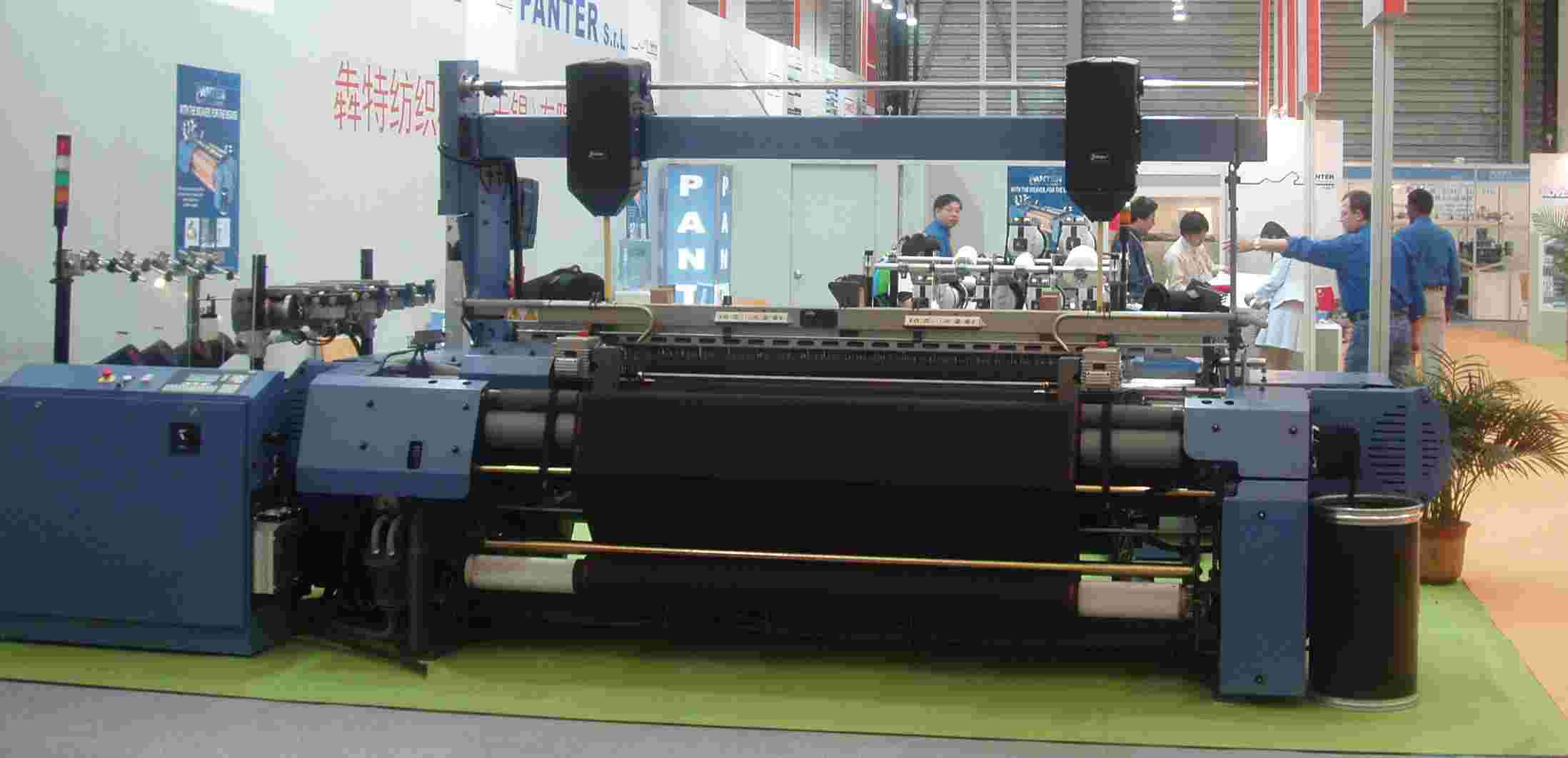

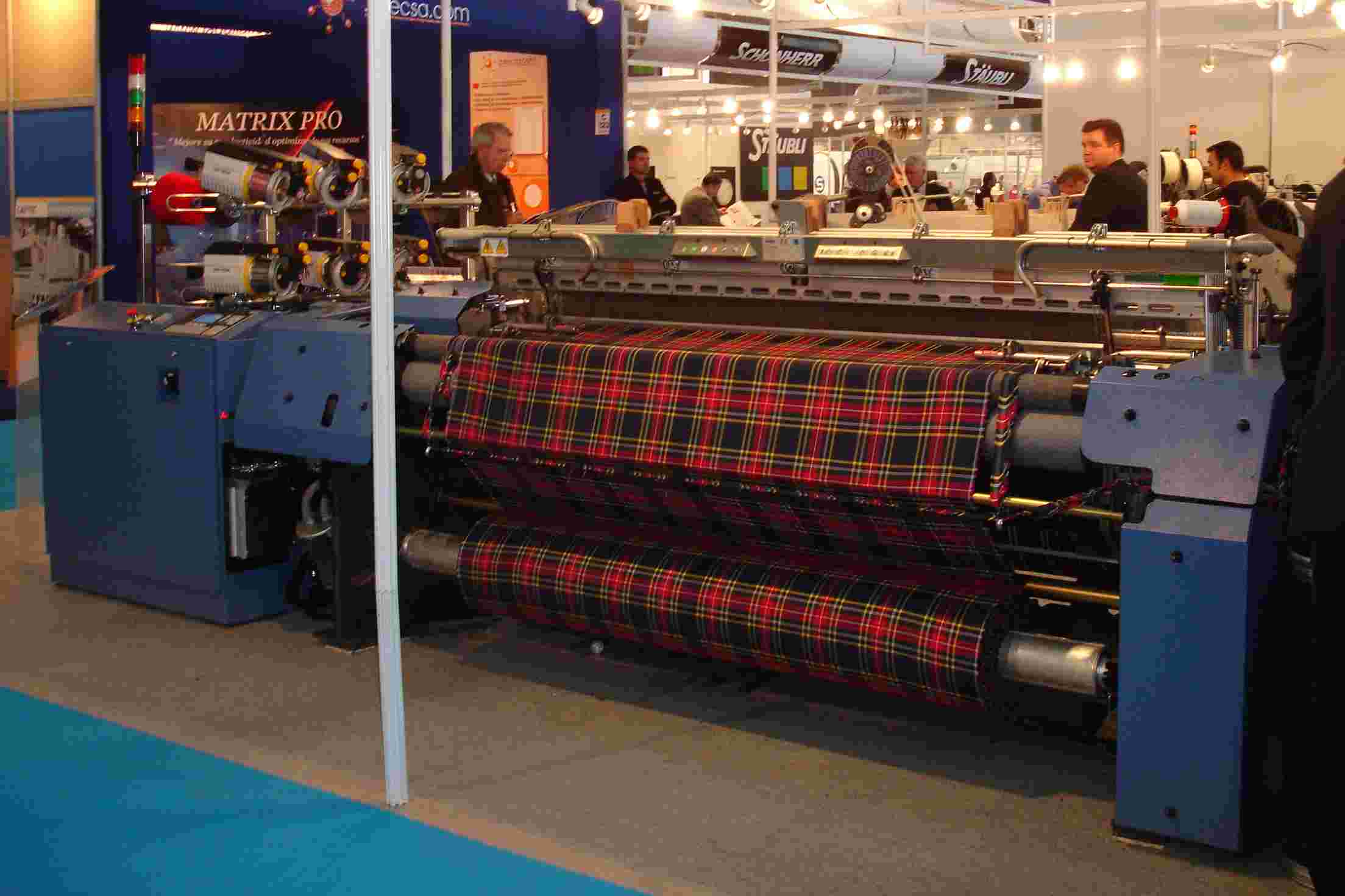

                           Shirting Loom                                         Suiting with Name Selvedge Jacquard

   Click on the Links (Words highlighted in Blue colour and underlined)  to watch the Photograph/Videos / Movies :-

 Most Modern Rapier Weaving Loom / Machines with the following features :-

• Minimum Warp Shed Opening for any Rapier Loom in the world leading to Very Low Warp  Stress / Breakages (44 mm in first healdframe & upto 140 mm for the  20th healdframe) --- i.e., Shed opening of
  only 25 to 30 mm  in Reed.

• "Screw - Nut  arrangment with Multiple Principles" for Rapier Drive leading to very low energy consumption, Low Noise and Very Low Friction in the Rapier Gear-Box, enabling use of very light  weight Grippers, Tapes and Drive Wheels, all leading to Minimum Maintainance Costs.

• Minimum Power Consumption due to Direct Drive Servo motor   (eg - 6.0 to 7.5 Amps for 500 - 550 rpm  on 190 cm Dobby loom in running state) - Power saving ranges from  15 - 40% when compared to
  secondhand / used looms of  Shuttleless type - Rapier / Projectile / Airjet /   from  manufacturers like
  Dornier / Picanol / Somet / Vamatex / Sulzer / Nuovo Pignone / SMIT / Tsudakoma / Toyota / Nissan etc,
  having Clutch and Brake systems, traditional Motors built for constant speed working for the
  Main Motor/Loom COMPARED TO OUR SERVO DRIVE.

• Only Loom in the world with possibility to use both POSITIVE and NEGATIVE Rapier systems in each loom as per the demands of the weft yarns.

• Can use various types of yarns for manufacturing (without any modifications in loom parts - except accessories like Healdwires / Reeds / Droppins), various types of fabrics in the same loom like:-


  • Apparel Wear Fabrics like Shirtings, Suitings, Dress Materials, Sarees, Duppatas, Dhoties, Lungi's
  • Bed Sheeting, Curtains, Upholstery, Furnishings,
  • Specialised Sportswear, Industrial Fabrics,
  • from yarns like Cotton / Polyester Viscose / Polyester Cotton / Silk / Wool / Rayon / Viscose / Nylon / Polypropelene / Acrylic / Metallic Yarns / Linen / Flax / Jute /  Hemp / Glass / Kevlar / Carbon / Aluminium / Fancy yarns like Hairy / Boucle, etc

• ZERO WASTAGE with Kevlar / Carbon type of costly yarns on one side of RAPIER LOOM.   Similarly for Spun Cotton / PV / PC yarns too, the NIL Wastage on one side is made possible by eliminating Auxillary Selvedge yarns / Catch threads on Weft insertion side.

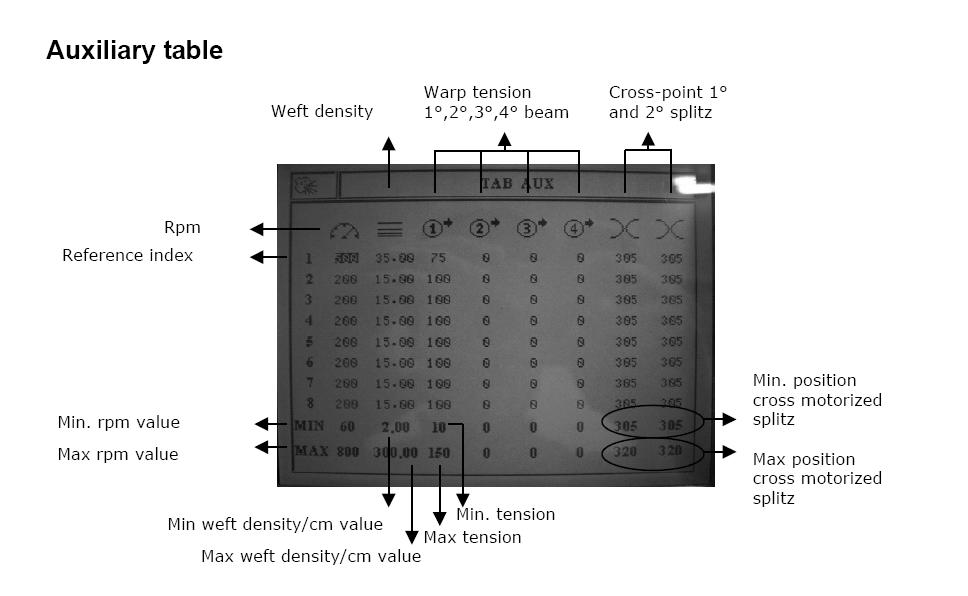

• Electronic Speed control, Electronic Let-off and Take up with any 8 different Electronically selectable combinations of Loom Speed, WarpBeam Tension and Picks/Inch in Every Fabric Sort/Article. Electronic Cramming & Fringeing is a standard feature,

• 4 / 8 / 12 Colour Electronic Weft Selecter with Multiple/Parallel insertions capability as a standard feature

• Staubli Electronic Dobby (upto 20 shafts) or any make of Electronic Jacquard With/Without Gantry for shedding

• Any type of Selvedges - Tucked / Fringe / Thermal Fused / Ultrasonically Sealed

• True DIGITAL Electronics running on CANBUS.   Supplied by Deimo S.p.A, Italy (a Staubli group company)

• Loom sizes  -  160 / 190 / 210 / 230 / 240 / 260 / 280 / 300 / 320 / 340 / 360 / 380 cm

• Special Features of Panter Rapier Loom  (please click the blue coloured link on the left for further details)
