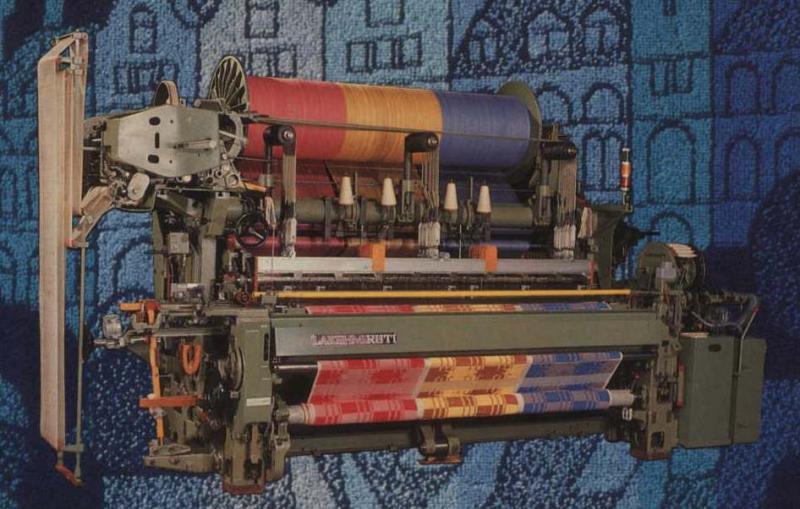

Lakshmi Automatic Shuttle Loom with the facility to weave  Terry fabrics with Single Weft  and
Cam motion / Dobby / Jacquard / combination Shedding mechanisms are proven since the last 40 years.

The loom is available with

• Single Warp Beam version upto a loom size of 220 cm
• with Ground Warp beam upto 700 mm size and

• Top Pile beam upto 1000 mm size and weighing upto 1500 kgs
• ON-LOOM Cloth Takeup with Spiked Takeup roller upto 520 mm diameter size
• Single / V / double reeds can be used
• Change from 3 to 4 pick terry or vice-versa possible
• Change from Terry to plain weaving in running loom is possible

• for weaving of Pile fabrics

• on one or both surfaces,
• Two different pile heights in any order
• Single or multiple widths
• Warp and Weft patters

EXCELLENT  FABRIC  QUALITY :-

• CONSTANT FABRIC WEIGHT DUE TO PRESET GROUND WARP TEMPLES AND EVEN DELIVERY OF THE PILE WARP
• EXACT BORDERED TERRY FABRIC DUE TO POSITIVE TAKEUP OVER SPIKED ROLLERS
• UNIFORM LOOP HEIGHT RIGHT UPTO THE SELVEDGE BECAUSE THE CROWHOP DEVICE FORCES THE PICK TO KEEP A STRAIGHT LINE
• PRECISION WEAVING-IN OF THE THREADS RESULTS IN A BETTER COMPACTING  OF LOOSE PICK GROUP
• FAULTLESS TRANSITION FROM TERRY TO PLAIN SECTIONS BY INTERRUPTIONS OF THE TAKE-UP, WARP-LETOFF AND PILE WARP FEED
•  UNBROKEN LOOP FORMATION DUE TO GOOD EXTENSION OF THE FABRIC AND THE WARP ENDS PASSING IN A STRAIGHT LINE THROUGH THE REED
