Rapier Loom for Silk Fabrics

Panter   Dobby  Looms with a very Low Warp shed opening of 44 mm to 51 mm in the first heald frame  (25 to 30 mm in the reed) help in reducing the stress on the warp yarns to the lowest possible for a Rapier loom.





For the Weft  Yarn, one can use the either of the weft insertion technologies depending on the deniers to be used

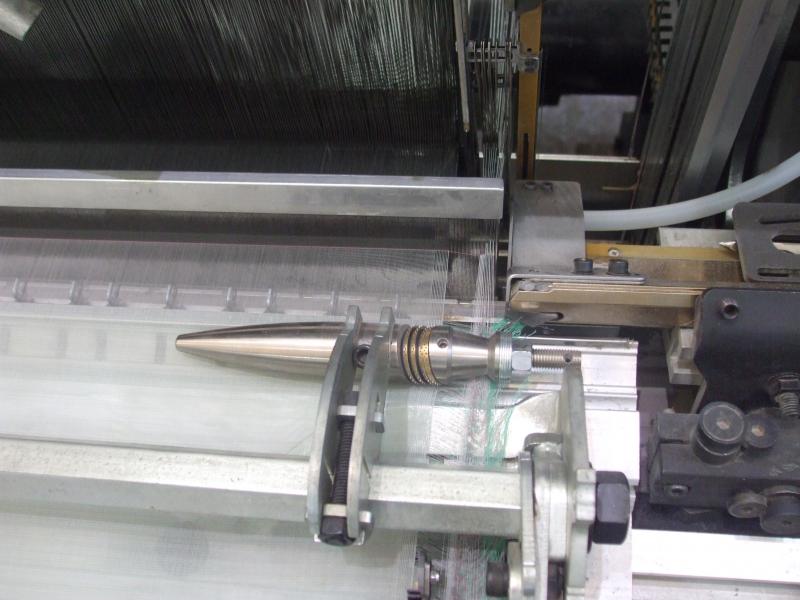

  • Negative Rapier with very Low Height helps in keeping the warp tension low. Thus allowing to increase the loom speeds.

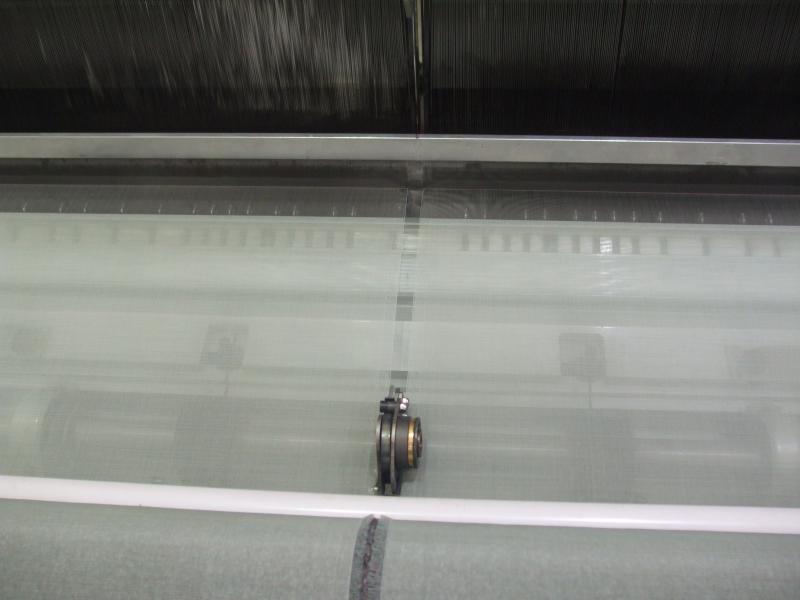

  • Positive Rapier  for almost NIL weft tension.  Here the pickup, transfer of the weft yarn takes place without placing any stree/tension on the weft yarn.  i.e., the Gripper/Rapier grips/holds onto the weft yarn with the aid of a special opening and catching mechanism and the weft yarn does not have to push the Rapier/Gripper jaws against their closing spring tension.



Options of upto 4 / 8 / 12 Electronic selectable weft colours,  8 different loom speeds depending on weft / Warp yarn limitations, 8 different pick densities depending on weave / Weft yarn size, Cramming and Freingeing  aid in the weaving of fine and delicate yarns
